Snertiskjár 1
snertiskjár 28059mál

Snertiskjár með 4 myndavélum

93,793 Kr.

Snertiskjár og 4 myndavélar DC 10-32v

Quad Monitor

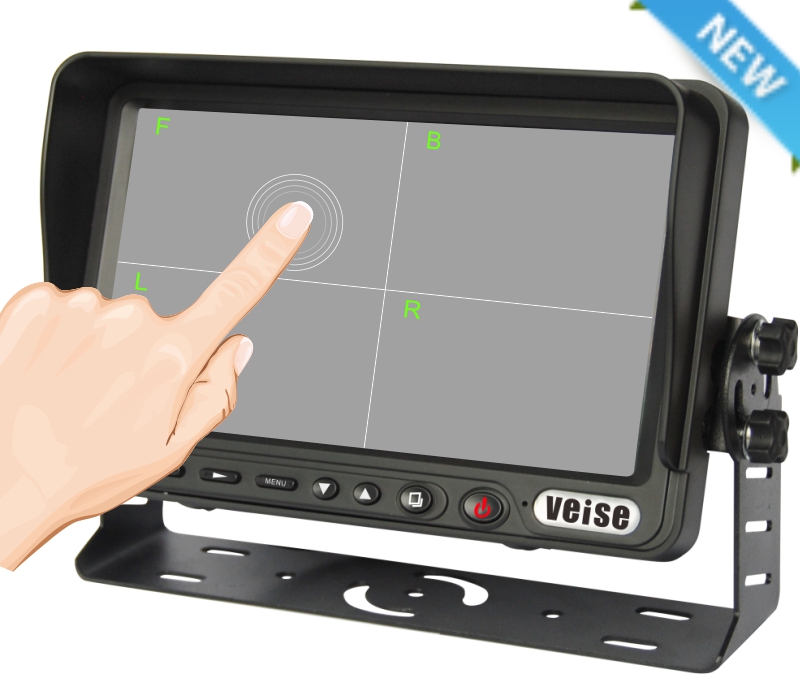

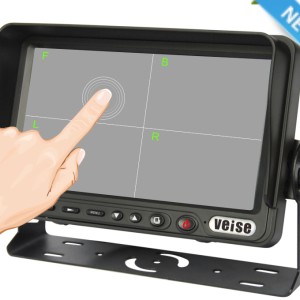

7″ Touch Screen TFT LCD Quad Monitor with Removable Sun Visor, 13 pin cable
Supports quad view single-point touch to single view, slid to switch the view modes. With shortcut keys toSingle View.
Totally with 9 different view modes. Each camera can be full displayed when it is triggered.
OSD MENU Separately Set Each Camera Trigger Priority/Separately ruler ref.
OSD MENU Support 4 language: Chinese, English, French, German
OSD MENU Separately Set Each Camera Reversing Image Delay Time 0-30s
OSD MENU Separately Set Each Camera Image Can be Rotated to Mirror or Non-mirro
Engineering model can set any screen display mode, ruler ref. display mode,
on screen LOGO on/off, no signal blue/black screen switch,etc.
Touch Screen: Resistive panel, support single-point touch, slid touch
Color System:PAL/NTSC (AUTO)
Display Resolution: 800RGB(H) X 480(V) dot
Wide view angle(CR:10):(up/ down): 45/65 (left/right): 65/65
Brightness (cd/m2): 400
Contrast ratio: 500:1
Operating temperature: -20℃ to +70℃
Storage temperature: -30℃ to +80℃
Load Dump: DC14+87V(Td400mS) 5pulses
Free Operating Voltage: DC11-32V

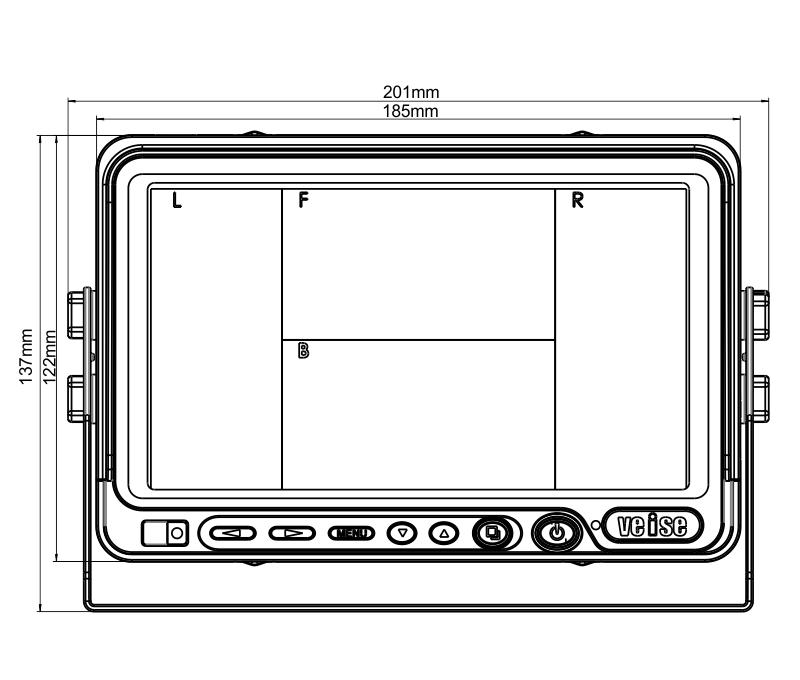

External dimensions:L*W*T(185X122X28)mm(without mounting)
Product Accessories
U- Support Bracket/Angle Adjustment Screw/Removable Sun Visor/Electrical Connecting Cable

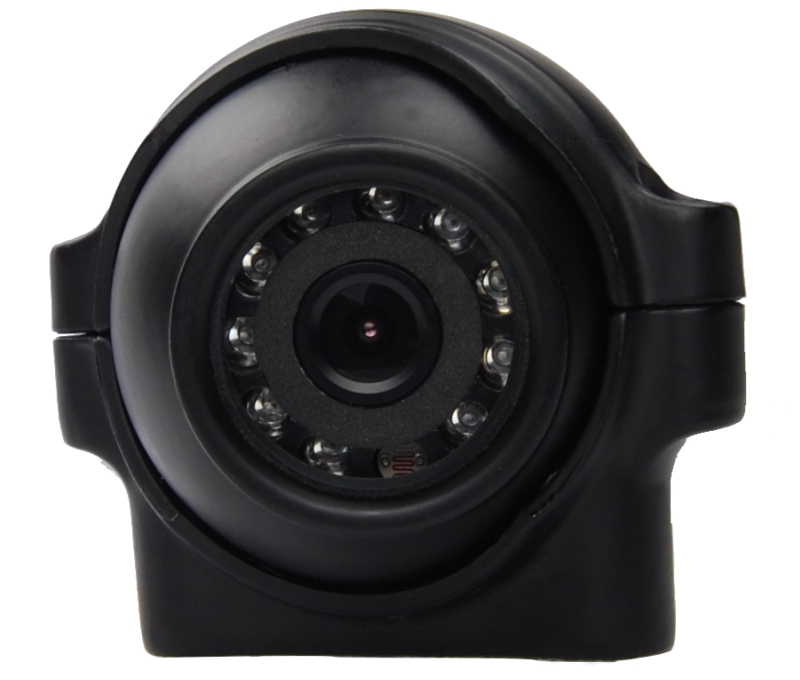

Waterproof IR Myndavél
Image Type: 1/3″ Color CCD
Horizontal Resolution:700TV Lines
Effective pixel:NTSC:976(H)×494(V) PAL:976(H)x582(V)
Usable Illumination : 0Lux ( Built in 10pcs IR  for Picture Support in the Dark)
Free viewing angle: 130°
Waterproof: 100% Waterproof IP69K Rating
Shockproof: 10G
Video Output:1.0Vp-p75Ω
Operation Temperature: -20°C~+70°C
Power supply:DC12V

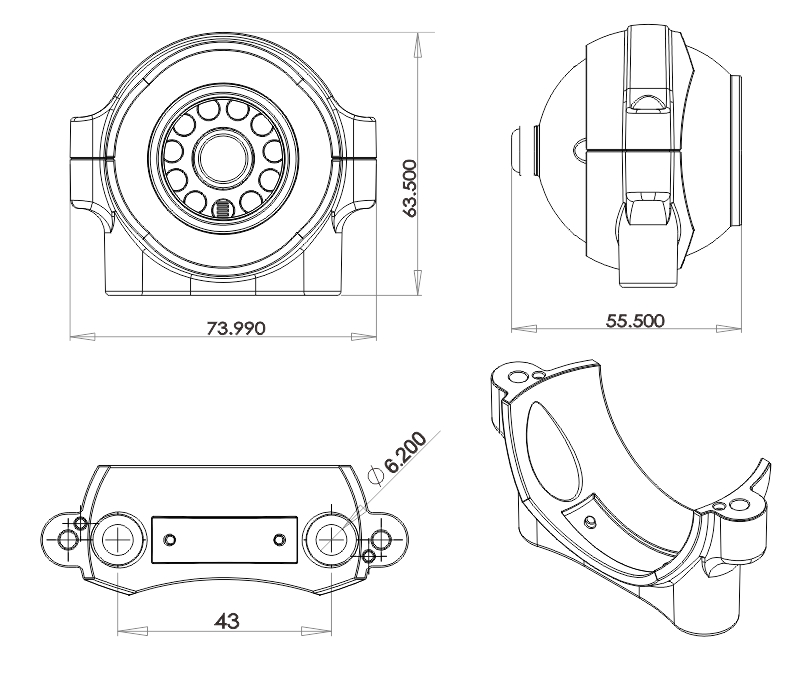

Dimensions: 55(L) x 63(W) x 74(H)mm

Out of stock
